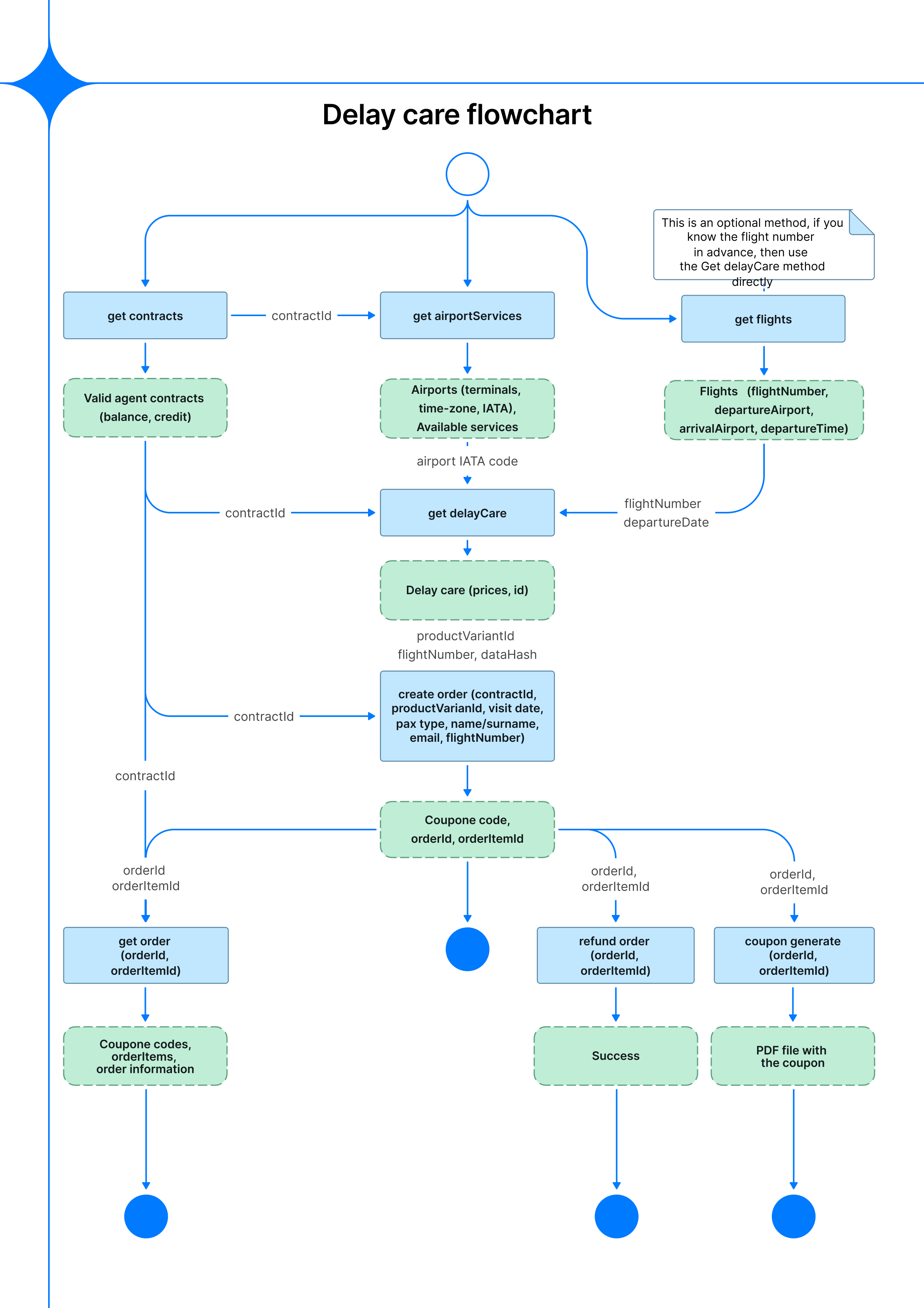

Flowchart​

Allows you to offer passengers compensation services when their flight is delayed. Because the service is tied to a specific flight, the flow requires a flight number and departure date — these can either be provided upfront or looked up via getFlights when only a route is known. Once a matching product is found, an order is placed and a voucher is delivered to the passenger.

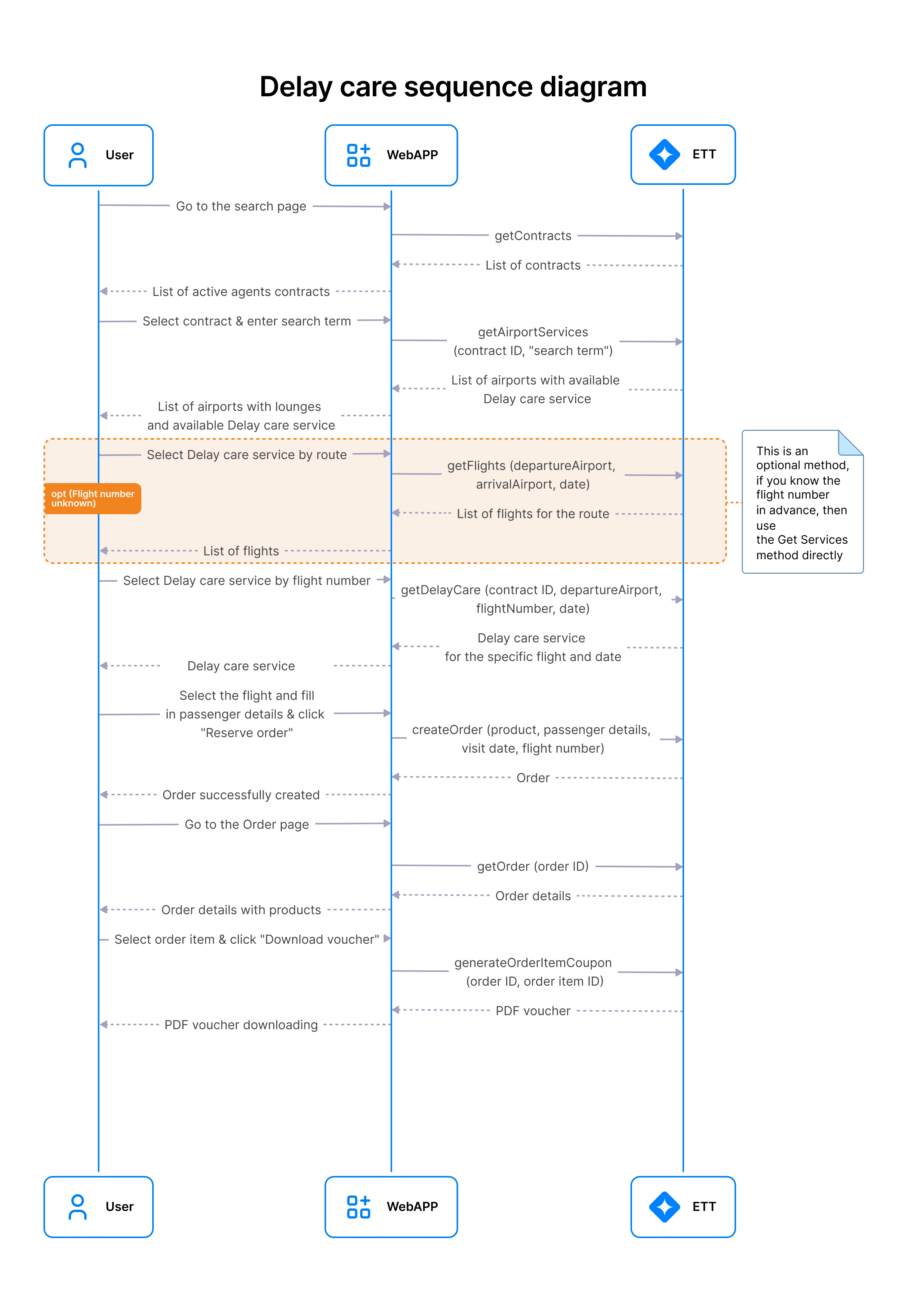

Sequence diagram​

Delay Care search and booking flow​

This scenario describes the interaction flow between the client and the ETT API via the WebApp for searching, selecting, and booking Delay Care services, as well as retrieving a voucher.

Overall process logic​

The process consists of the following steps:

  1. Retrieve available contracts
  2. Search for airports with Delay Care services
  3. (Optional) Retrieve flights for a specific route
  4. Retrieve Delay Care services
  5. Create an order
  6. Retrieve order details
  7. Generate a voucher

The WebApp acts as an intermediary between the client and the ETT API.

1. Retrieve contracts​

  • Method: getContracts
  • Description: Retrieves the list of available contracts for the agent.
  • Result: A list of contracts available for further operations.

2. Search airports with Delay Care services​

  • Method: getAirportServices(contractId, searchTerm)
  • Parameters:
    • contractId — selected contract identifier
    • searchTerm — search query (city, airport, etc.)
  • Description: Returns a list of airports where Delay Care services are available.
  • Result: A list of airports with available Delay Care services.

3. (Optional) Retrieve flights by route​

  • Method: getFlights(departureAirport, arrivalAirport, date)
  • Parameters:
    • departureAirport — departure airport code
    • arrivalAirport — arrival airport code
    • date — flight date
  • Description: Returns a list of flights for the specified route and date.
  • Result: A list of flights.

Note: This step is optional. If the flight number is already known, the client can skip this step and proceed directly to retrieving Delay Care services.

4. Retrieve Delay Care services​

  • Method: getDelayCare(contractId, departureAirport, flightNumber, date)
  • Parameters:
    • contractId — contract identifier
    • departureAirport — departure airport code
    • flightNumber — flight number
    • date — flight date
  • Description: Returns Delay Care services available for the specified flight.
  • Result: Delay Care service details for the given flight and date.

5. Create order​

  • Method: createOrder(product, passengerDetails, visitDate, flightNumber)
  • Parameters:
    • product — selected Delay Care product
    • passengerDetails — passenger information
    • visitDate — service date
    • flightNumber — flight number
  • Description: Creates an order for Delay Care service.
  • Result: Order confirmation with orderId.

6. Retrieve order details​

  • Method: getOrder(orderId)
  • Parameters:
    • orderId — order identifier
  • Description: Retrieves full information about the order.
  • Result: Order details and list of items.

7. Generate voucher​

  • Method: generateOrderItemCoupon(orderId, orderItemId)
  • Parameters:
    • orderId — order identifier
    • orderItemId — order item identifier
  • Description: Generates a PDF voucher for the selected order item.
  • Result: A downloadable PDF document.
